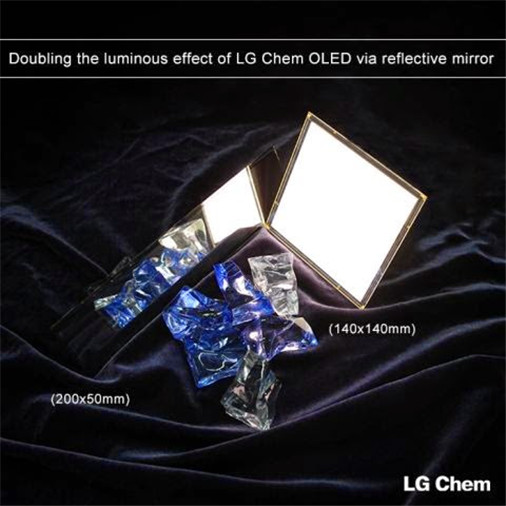

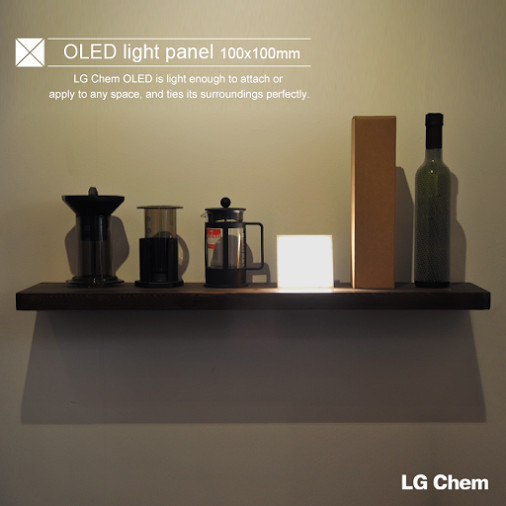

2015 New Tech OLED panel,140×140mm stylish OLED panel lights

The 140×140mm stylish OLED panel lights is 0.88mm thick panel and has an efficiency of 60lm/W, CRI over 90, and has output levels of 75lm with a nominal input (8.5V 150mA). The panel’s output can reach 1,200lm which is similar to a common 60-75 Watt incandescent lamp.This is significant because it marks first time that OLEDs can be considered as an energy-efficient / human-friendly light source available for general purpose use.
Other Products
Why we deserve to have it ?
Exhibition
LOOK FORWARD TO YOUR REQUIRY
Technical Parameter
| TYPE | FLEXIBLE | |
| MODEL | N6SC30 | N6SC40 |
| CCT(K) | 3000 | 4000 |
| Thickness(mm) | 0.88 | 0.88 |
| Efficacy(lm/w) | 60 | 55 |
| CRI | 90 | 90 |
| Flux(lm) | 150 | 150 |
| Uniformity(%) | >85 | >85 |
| Voltage(V) | 8.5 | 6 |
| DC Current(mA) | 300 | 480 |
| LT70(K Hrs) | 40 | 30 |
